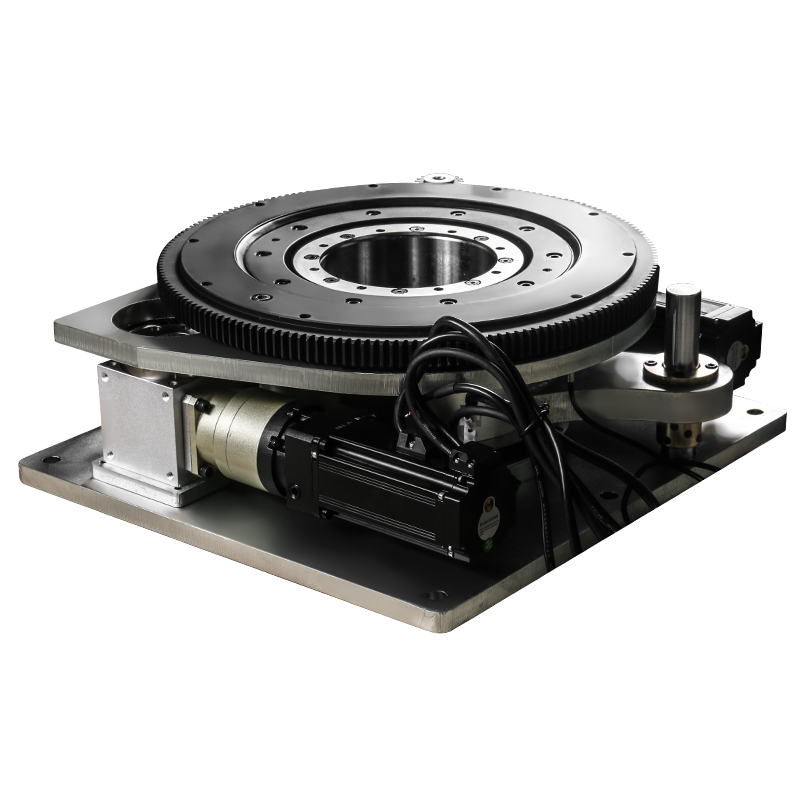

1 Ton AGV Lifting & Rotating Mechanism

AGV lifting mechanism Compact in size, with strong lifting capacity and high reliability, it features both lifting and rotating functions. The lifting mechanism is a ball screw nut mechanism, which operates through rolling friction, resulting in low friction resistance and long service life, with no maintenance required. Performance ： Custom： Anti-corrosion : ★ ★ ★ ★ ☆ ▶ Installation customization Torque ： ★ ★ ★ ★ ★ ▶ Supports customized motor power Degree of precision ： ★ ★ ★ ★ ★ ▶ Support torque customization Bearing capacity : ★ ★ ★ ★ ★ ▶ Supports customized tread patterns weather resistance : ★ ★ ★ ★ ☆ ▶ Supports customization of tread materials Model JP-LIFT-L1000-M600-S60 Lift Motor Rated Power（W） Rated Voltage(VDC) Rated Current (A) Rated Speed (RPM) Rated Torque (NM) JP-LIFT-L1000-M600-S60 600W 48VDC 18A 3000RPM 1.91NM Proximity Switch Lifting Stroke (mm) Screw Lead pitch (mm) Reducer ratio (i) Lift Speed (mm /s ) NPN 60mm 10mm 60i 8.3mm/s Rotation Motor Rated power（W） Rated voltage(VDC) Rated Current (A) Rated Speed (RPM) Rated Torque (NM) JP-LIFT-L1000-M600-S60 600W 48VDC 18A 3000RPM 1.91NM Absolute sensor Reducer ratio (i) Rotation Speed (◦/s) Load capacity(kg ) RS485 200i 90°/s 1000kg AGV Lift Operating Manual_compressed.pdf | Model | JP-LIFT-L1000-M600-S60 | Lift Motor | Rated Power（W） | Rated Voltage(VDC) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (NM) | JP-LIFT-L1000-M600-S60 | 600W | 48VDC | 18A | 3000RPM | 1.91NM | Proximity Switch | Lifting Stroke (mm) | Screw Lead pitch (mm) | Reducer ratio (i) | Lift Speed (mm /s ) | NPN | 60mm | 10mm | 60i | 8.3mm/s | Rotation Motor | Rated power（W） | Rated voltage(VDC) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (NM) | JP-LIFT-L1000-M600-S60 | 600W | 48VDC | 18A | 3000RPM | 1.91NM | Absolute sensor | Reducer ratio (i) | Rotation Speed (◦/s) | Load capacity(kg ) | RS485 | 200i | 90°/s | 1000kg
