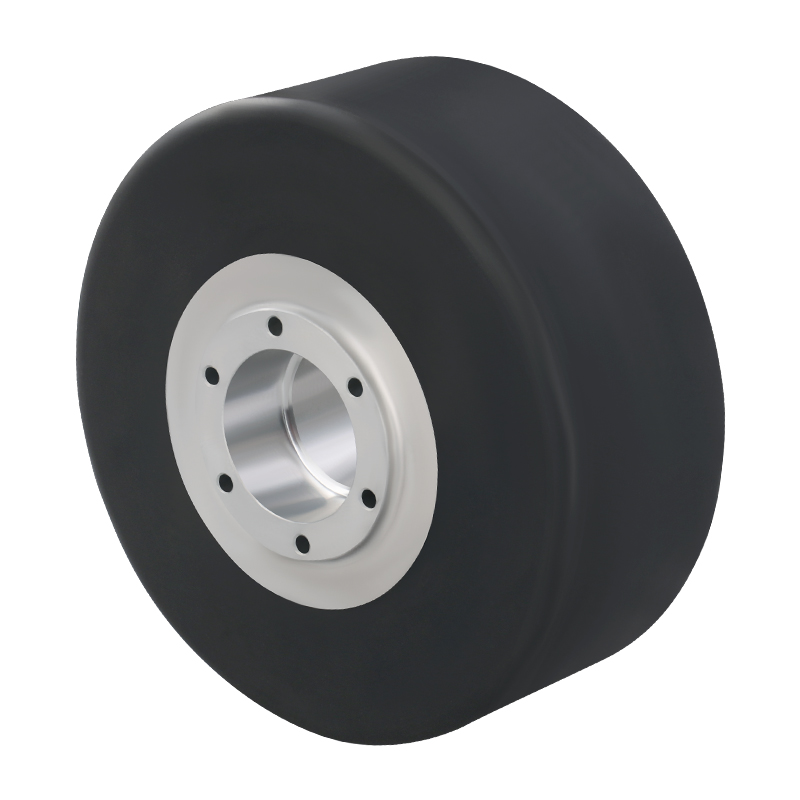

120x53mm-A2
Product Model
AGV120X53A2ALNR110103
Wheel diameter
120mm
Wheel width
53mm
Tread material
Natural rubber/Neoprene rubber/NBR
Tread hardness
Shore 75A±3
Tread color
Black
Wheel core
Aluminium alloy
Loading capacity
200kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Weight
0.75kg
AGV rubber driving wheel Natural rubber wheels, anti-UV, anti-84 disinfectant. high friction coefficient good grip.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Rubber Material Comparison：
| Rubber material | Elasticity | Oil resistance | Weather resistance | Heat resistance | Flame resistance | Applications |
|---|---|---|---|---|---|---|
| Natural rubber | Excellent | Poor | Poor (anti-aging agent required) | ≤80°C | Flammable | Tires, vibration-damping parts |
| Neoprene rubber | Medium | Medium | Excellent | ≤120°C | Self-extinguishing | Outdoor sealing, fire-resistant materials |
| NBR | Medium | Excellent | Poor (ozone-resistant additive required) | ≤150°C (short-term) | Flammable | Oil seals, fuel systems |
