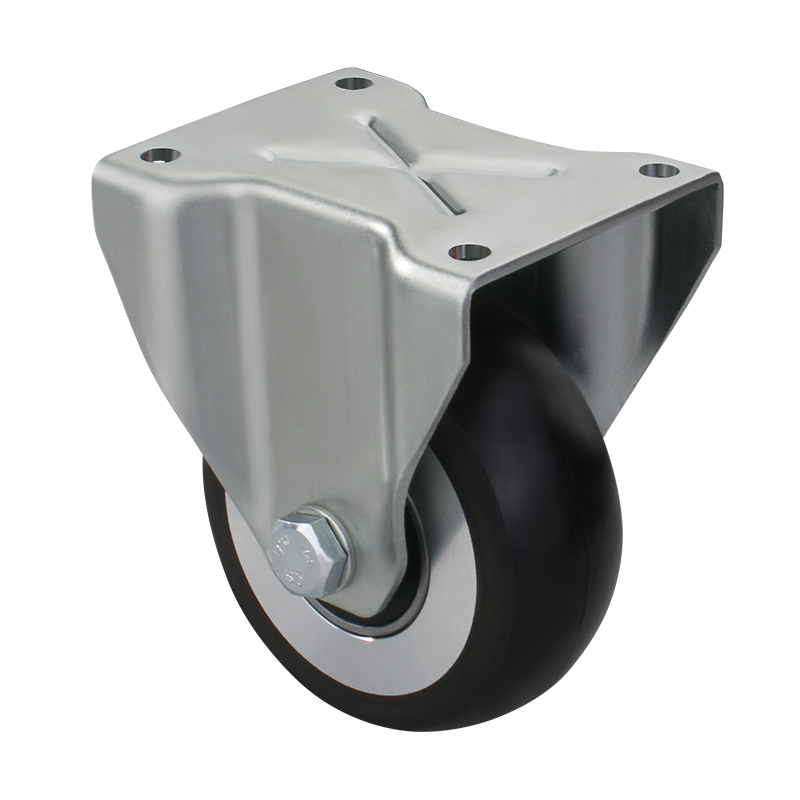

EQ053
Product Model
EQ053
Wheel diameter
80~200mm
Wheel width
40mm
Tread material
Polyurethane JPY003
Tread hardness
Shore 93A±3
Tread color
Black
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
AL.Alloy core double ball bearing
Loading capacity
300~500kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Rigid caster with polyurethan wheel Stamped steel plate in one piece,bracket suface galvanized treatment, corrosion and rust resistant polyurethane tread material,wear-resistant travel quietly on the ground without leaving marks.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kgs） |
| 3.15 " | rigid | EQ05300-80*40ALCPU010102 | 80 | 40 | 110 | 105X85 | 86X60 75X55 | 9 | 300 | |
| 4 " | EQ05300-100*40ALCPU010102 | 100 | 40 | 130 | 105X85 | 86X60 75X55 | 9 | 350 | ||
| 5 " | EQ05300-125*40ALCPU010102 | 125 | 40 | 156 | 105X85 | 86X60 75X55 | 9 | 400 | ||
| 6 " | EQ05300-150*40ALCPU010102 | 150 | 40 | 180 | 105X85 | 86X60 75X55 | 9 | 450 | ||
| 8 " | EQ05300-200*40ALCPU010102 | 200 | 40 | 235 | 105X85 | 86X60 75X55 | 9 | 500 |
