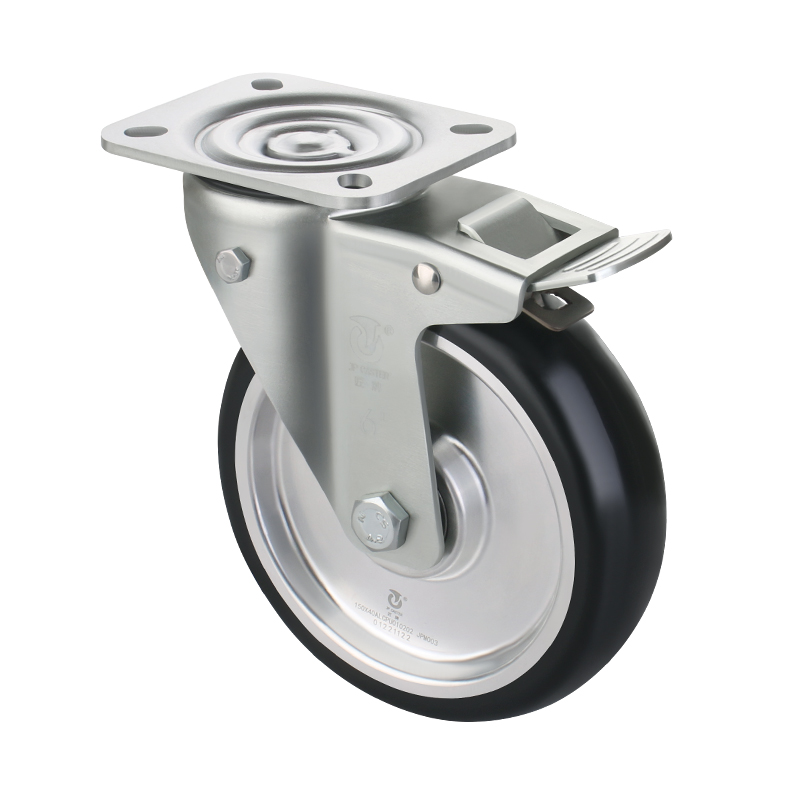

EQ053CYZD
Product Model
EQ053CYZD
Wheel diameter
65~200mm
Wheel width
40mm
Tread material
Polyurethane JPY003
Tread hardness
Shore 93A±3
Tread color
Black
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
AL.Alloy core double ball bearing
Loading capacity
200~500kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Aligning caster with brake Caster walking in any direction to stop, and when the body leaves from the ground automatic reset the direction parallel to the boottom plate. depress the pedal and brake the wheel steering is locked at the same time. the system accessories all made by SUS304 stainless steel material to avoid corrosion and rust, ruduce firction and increase wear resistance. high temperature polyurethane, can withstand high temprature 100°c for 15~18 hours.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 2.5 " | plate swivel | EQ05312-65*40ALCPU010102(CYZD) | 65 | 40 | 95 | 104.5 | 105x85 | 80x60 75x55 | 9 | 270 | |
| 3 " | EQ05312-75*40ALCPU010102(CYZD) | 75 | 40 | 105 | 104.5 | 105x85 | 80x60 75x55 | 9 | 300 | ||
| 3.15 " | EQ05312-80*40ALCPU010102(CYZD) | 80 | 40 | 110 | 110 | 105x85 | 80x60 75x55 | 9 | 300 | ||
| 4 " | EQ05312-100*40ALCPU010102 | 100 | 40 | 130 | 104.5 | 105x85 | 80x60 75x55 | 9 | 350 | ||
| 5 " | EQ05312-125*40ALCPU010102 | 125 | 40 | 156 | 117 | 105x85 | 80x60 75x55 | 9 | 400 | ||
| 6 " | EQ05312-150*40ALCPU010102 | 150 | 40 | 180 | 121 | 105x85 | 80x60 75x55 | 9 | 450 | ||
| 8 " | EQ05312-200*40ALCPU010102 | 200 | 40 | 231 | 157 | 105x85 | 80x60 75x55 | 9 | 500 |
