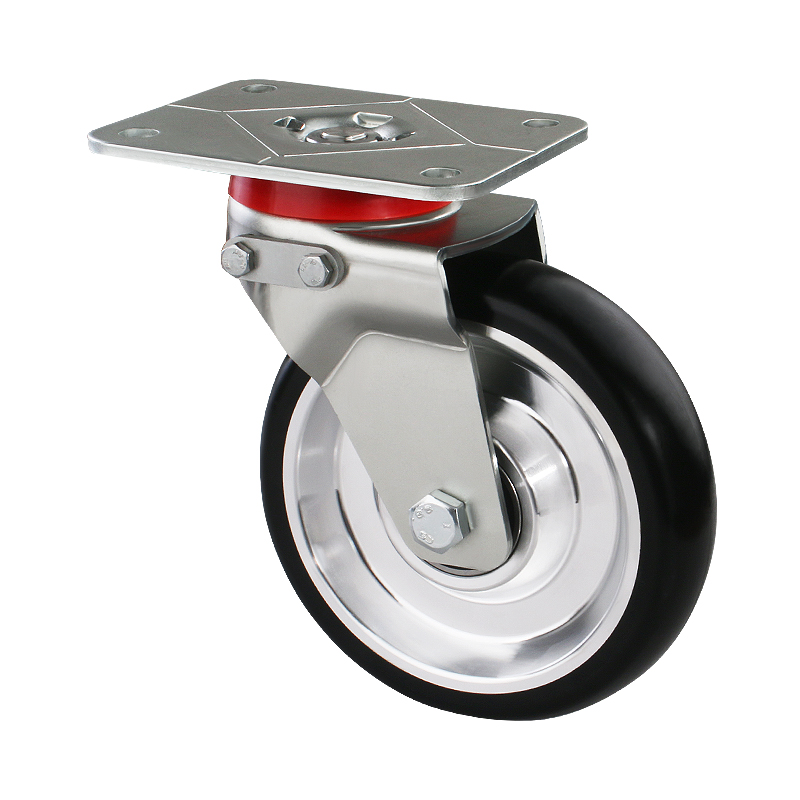

EQ055ZDFW
Aligning caster The casters can keep moving in straight line based on vertical pushing, when giving the turning strength it is also a swivel caster, when caster left from the ground, the directions automaticly back to the original point which 180° parallel to the mounting plate length or width. the system accessories all made by SUS304 stainless steel material to avoid corrsion and rust ,ruduce firction and increase wear resistance.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight（kgs） |
| 3.15 " | plate swivel | EQ05510-80*40ALCPU010102(ZDFW) | 80 | 40 | 120 | 76.5 | 105X85 | 80X60 | 9 | 300 | |
| 4 " | EQ05510-100*40ALCPU010102(ZDFW) | 100 | 40 | 135 | 76.5 | 105X85 | 80X60 | 9 | 350 |
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight（kgs） |
| 5 " | plate swivel | EQ05510-125*40ALCPU010102(ZDFW) | 125 | 40 | 160 | 132.5 | 135X110 | 105X80 | 11 | 400 | |
| 6 " | EQ05510-150*40ALCPU010102(ZDFW) | 150 | 40 | 195 | 132.5 | 135X110 | 105X80 | 11 | 450 | ||
| 8 " | EQ05510-200*40ALCPU010102(ZDFW) | 200 | 40 | 235 | 132.5 | 135X110 | 105X80 | 11 | 500 |
