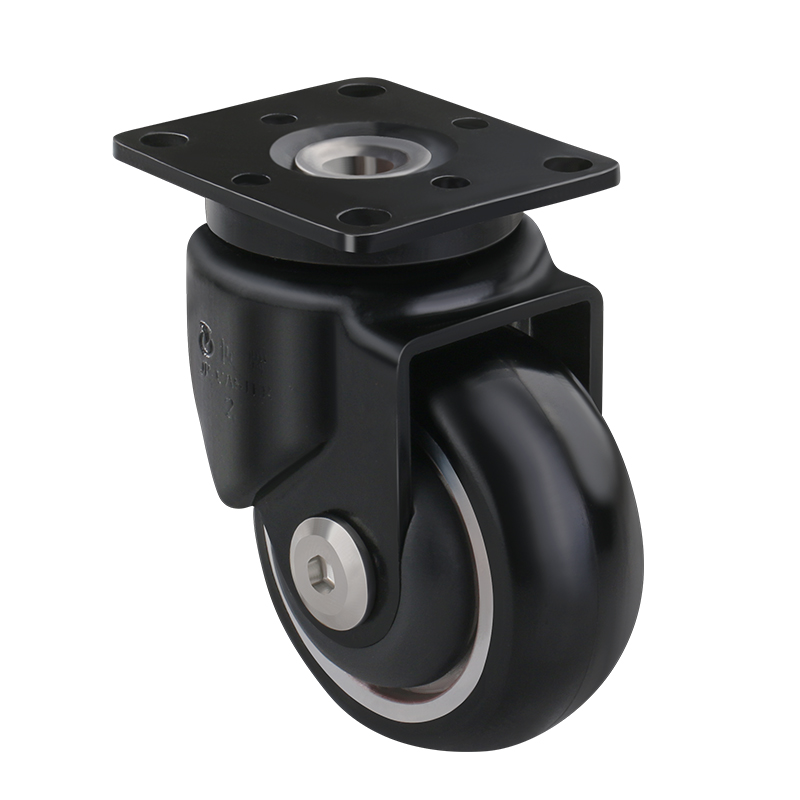

JQR013
Product Model
JQR013
Wheel diameter
50mm
Wheel width
20mm
Tread material
Polyurethane
Tread hardness
Shore 93A±3
Tread color
Black
Fork material
Heavy pressed steel
Wheel core
AL.Alloy core double ball bearing
Loading capacity
40kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Mini duty plate swivel caster Small size of casters saves mounting space.pressed steel formed in one time, strong & durable. precise bearing inside of swivel head, smooth steering, quiet. metal duat & splash cover, looks more beautiful and dustproof, waterproof.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 2” | plate swivel | JQR01310-50*20ALCPU010102（FCR） | 50 | 20 | 67 | 37.5 | 46x38 | 36x28 | 5.5 | 40 | 0.225 |
