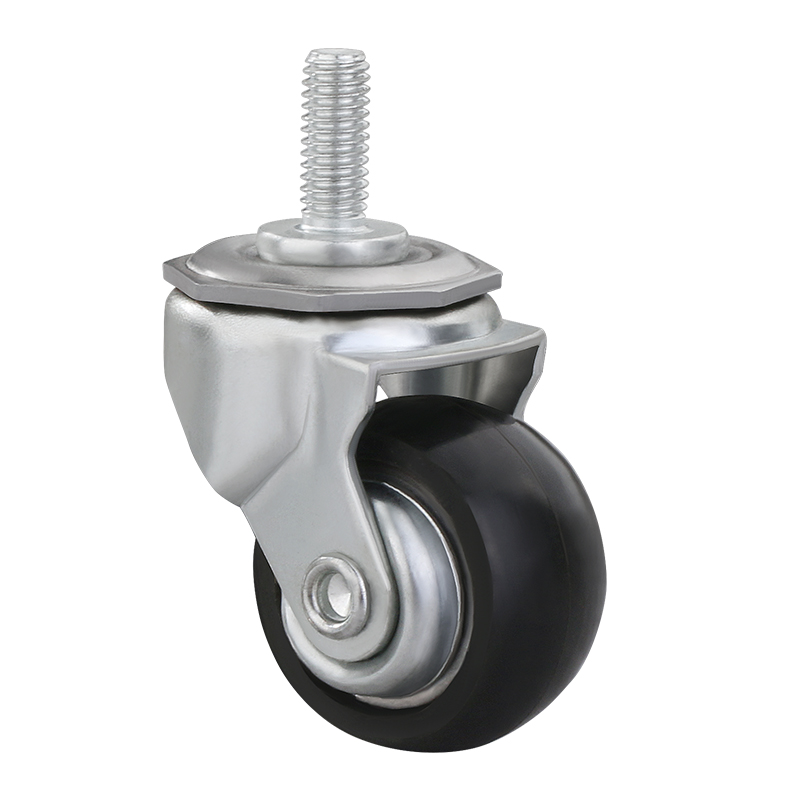

JQR013
Product Model
JQR013
Wheel diameter
30mm
Wheel width
15mm
Tread material
Polyurethane
Tread hardness
Shore 93A±3
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
AL.Alloy core double ball bearing
Loading capacity
20kgs
Temperature
-25℃~+70℃
Mini duty thread stand caster series Compact size to save product space,head double bearing easy steering & impact resistance, bracket stamping steel one-piece molding.internal and external of the wheel double dust and splash cover. wrap-around design to fit the housing to avoid any human hair winding or small splash. wheel tread high quality polyurethane wear resistance and rolling smooth.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | thread stand (mm) | hexagonal subetense (mm) | loading capacity （kgs） | weight （kg） |
| 1.2 ” | thread stand swivel | JQR01310-30*15ALCPU010101 | 30 | 15 | 43.5 | 26 | M6*15 | 27 | 20 | 0.065 |
