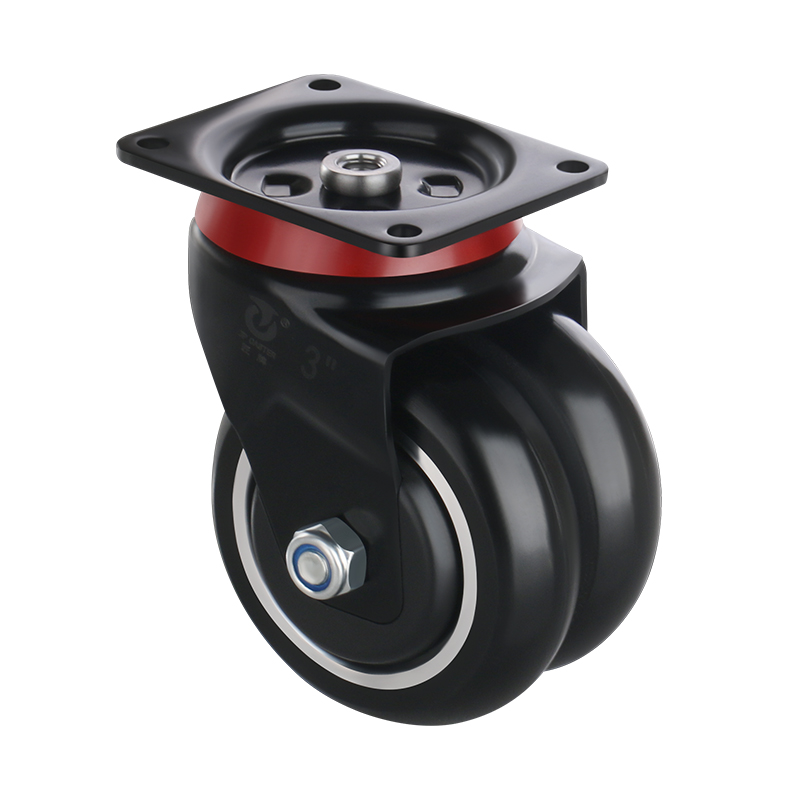

JQR022
Product Model
JQR022
Wheel diameter
51~100mm
Wheel width
23X2mm
Tread material
Polyurethane JPZK03/JPY001
Tread hardness
Shore 80A/93A±3
Tread color
Black
Fork material
Heavy pressed steel
Wheel core
AL.Alloy core double ball bearing
Loading capacity
60~120kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Weight
0.55kg
Light duty double wheel differential motion caster turnning,rolling more smooth.head rotating flat bearing and deep groove ball bearing smooth rotating.black electrophoresis treatment of steel plate bracket, It can be fully covered with rust and anticorrosion effect.wheel tread high quality cast polyurethane,rolling quiet & no marks on the floor.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 2 " | plate swivel | JQR02210-51*23X2ALCPU010202 | 51 | 23X2 | 75 | 45 | 72X57 | 60X44 | 5.5 | 60 | 0.475 |
| 2.5 " | JQR02210-65*23X2ALCPU010202 | 65 | 23X2 | 90 | 54 | 72X57 | 60X44 | 5.5 | 80 | 0.567 | |
| 3 " | JQR02210-75*23X2ALCPU010202（FCR） | 75 | 23X2 | 99 | 58 | 72X57 | 60X44 | 5.5 | 100 | 0.666 |
