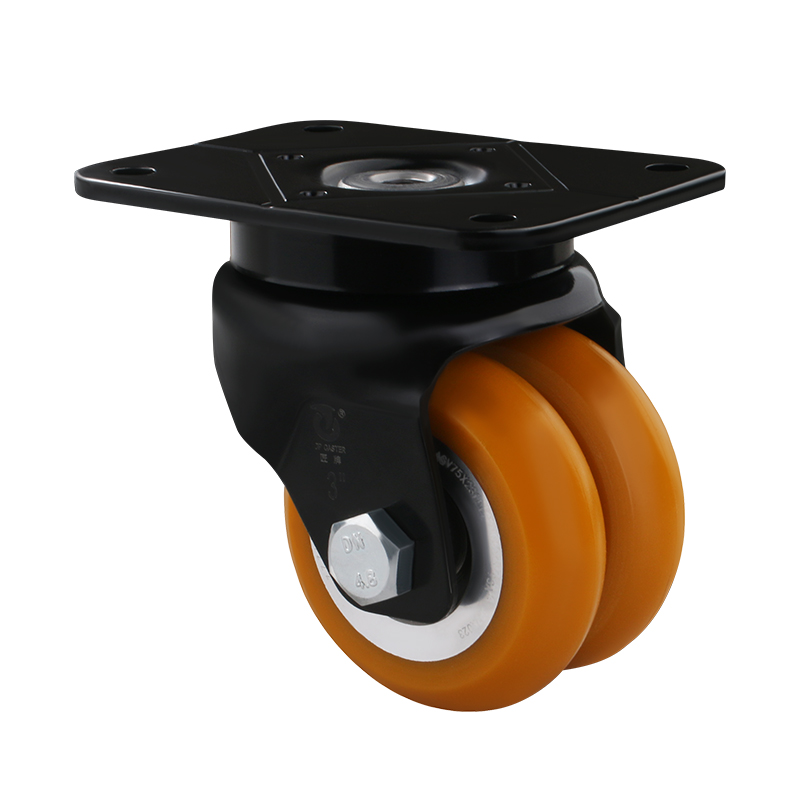

JQR042A
Product Model
JQR042A
Wheel diameter
51~100mm
Wheel width
23X2mm
Tread material
Polyurethane JPZK03
Tread hardness
Shore 83A/93A±3
Tread color
Brown
Fork material
Heavy pressed steel
Wheel core
Double ball bearing
Loading capacity
150~210kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Light to heavy duty dual wheel caster series Swivel head build in axial groved ball bearing, neck with steel dust & splash cover looks beautiful and durable. scaffold electrophoresis process, uniform coating thickness,strong adhesion, good corrosion resistance. dual wheel, pivot steering and rolling more smooth.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 2 " | plate swivel | JQR04210-51*23X2ALCPU070202 | 51 | 23X2 | 85 | 55 | 110X85 | 86X60 | 8.5 | 150 | |
| 2.5 " | JQR04210-65*23X2ALCPU070202 | 65 | 23X2 | 95 | 56 | 110X85 | 86X60 | 8.5 | 170 | ||
| 3 " | JQR04210-75*23X2ALCPU070202 | 75 | 23X2 | 107 | 63 | 110X85 | 86X60 | 8.5 | 180 | ||
| 4 " | JQR04210-100*23X2ALCPU070202 | 100 | 23X2 | 130 | 80 | 110X85 | 86X60 | 8.5 | 200 |
