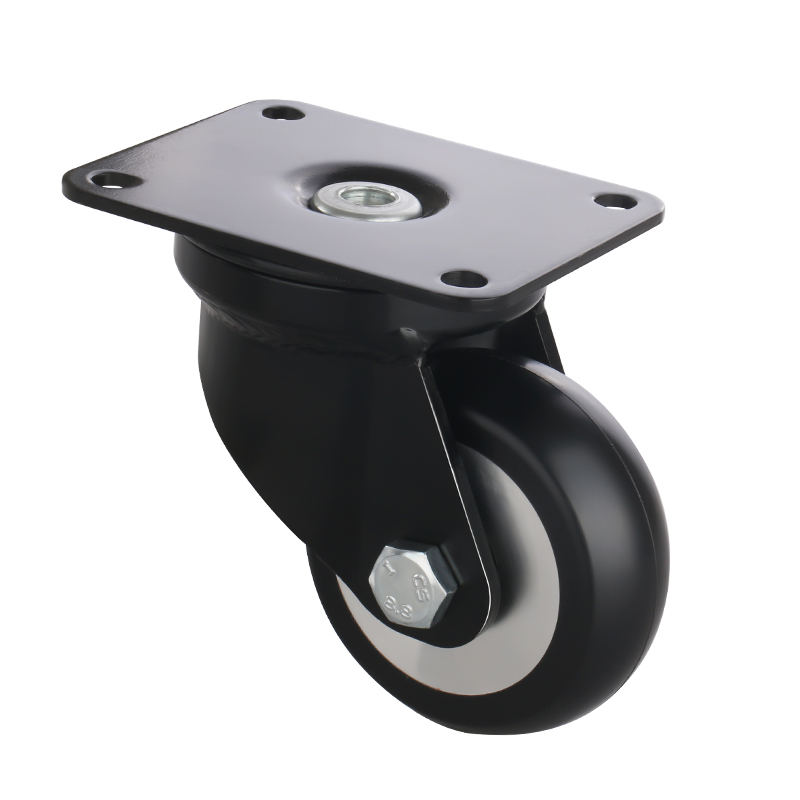

JQR043
Product Model
JQR043
Wheel diameter
75~80mm
Wheel width
30mm
Tread material
Polyurethane JPZK01
Tread hardness
Shore 80A±3
Tread color
Black/Brown
Fork material
Heavy pressed steel
Wheel core
Double ball bearing
Loading capacity
150kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Light to heavy duty caster series Swivel head build in axial groved ball bearing, scaffold electrophoresis process, uniform coating thickness,strong adhesion, good corrosion resistance.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 3” | plate swivel | JQR04310-75*30ALCPU070102 | 75 | 30 | 97 | 71.5 | 95x80 | 75x60 | 8.7 | 70 | 0.994 |
| 3.15” | JQR04310-80*30ALCPU070102 | 80 | 30 | 102 | 74 | 100X80 | 80X60 | 8.7 | 150 |
