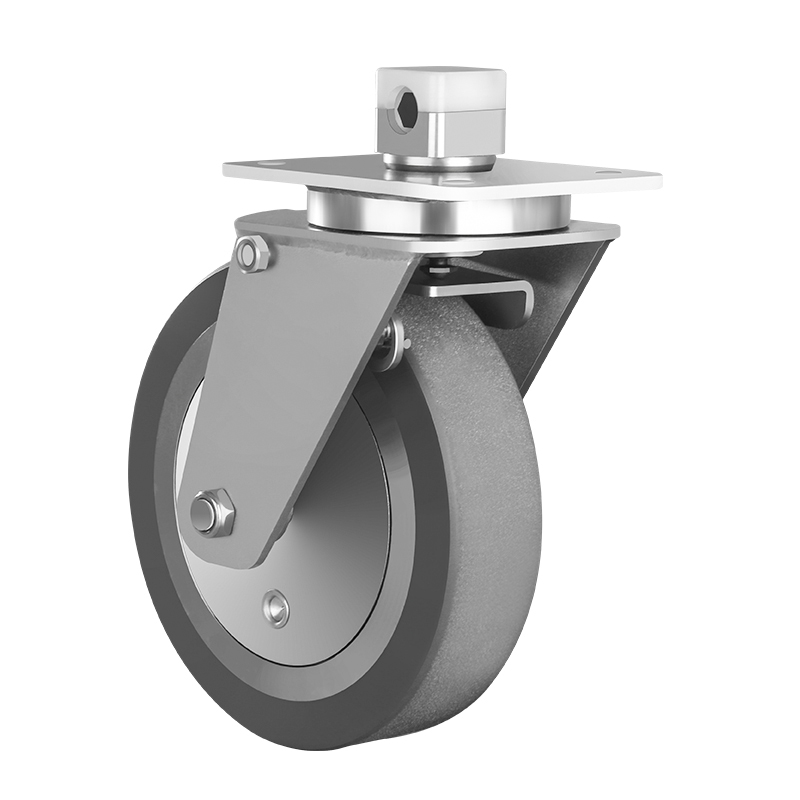

JQR049
Product Model
JQR04997-200*50CCPU020102
Wheel diameter
200mm
Wheel width
50mm
Tread material
Polyurethane
Tread hardness
Shore 93A±3
Tread color
Gray
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
45# steel
Loading capacity
400kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Weight
9.0kg
Drum brake caster Strong steel structure support, high load, and has automatic braking function, when walking without stopping. Short braking distance, 400kg of goods only 0.5 meters braking distance. The combination of head plane bearing and deep groove ball limit bearing can not only withstand vertical pressure, but also resist torsion and impact.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 8" | plate swivel | JQR04997-200*50CCPU020102 | 200 | 50 | 238 | 165 | 110X140 | 75x105 80x105 | 11 | 400 | 9 |
