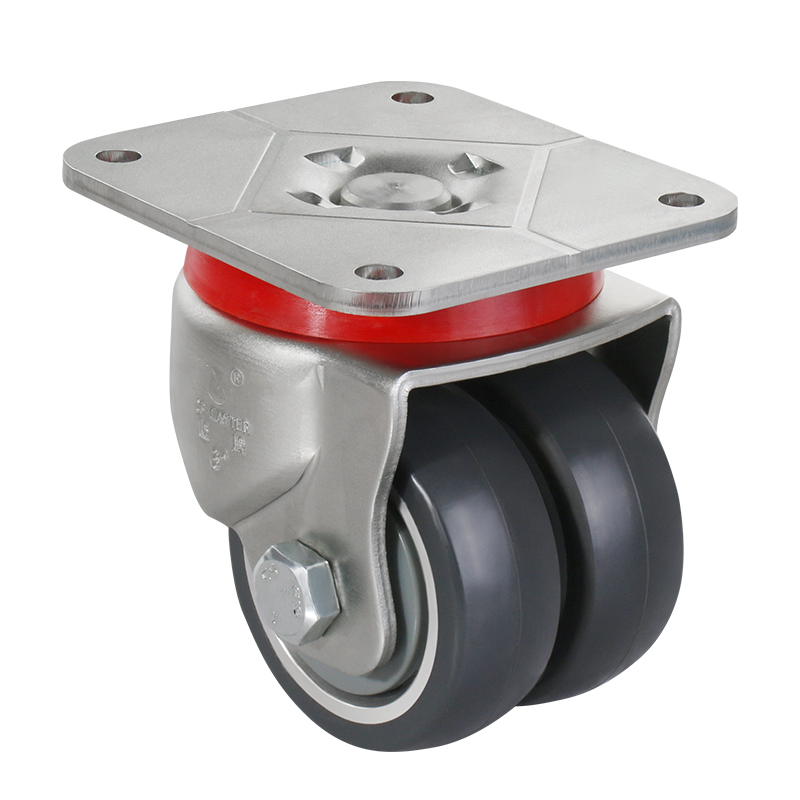

JQR062/A1 Swivel Dual-Wheel AGV Caster
Product Model
JQR062/A1 Swivel Dual-Wheel AGV Caster
Wheel diameter
76~127mm
Wheel width
27.5x2mm
Tread material
Polyurethane JPZK03
Tread hardness
Shore 93A±3
Tread color
Gray
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
AL.Alloy core double ball bearing
Loading capacity
400~500kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
AGV heavy-duty caster Swivel braket with axial grooved ball bearing and precise radial deep grooved ball bearing in the swivel head, rolling more smooth. dust & splash-proof, fitted copper grease nipple, bolted and secured with very strong central kingpin. withstand vertical pressure & resist torsion and impact.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 3 " | plate swivel | JQR06210-76*27.5X2ALCPU010201 | 76 | 27.5X2 | 110 | 64 | 110X100 | 85X75 | 9 | 400 | |
| 4 " | JQR06210-100*27.5X2ALCPU010201 | 100 | 27.5X2 | 132 | 82 | 110X100 | 85X75 | 9 | 350 | ||
| 5 " | JQR06210-127*27.5X2ALCPU010201 | 127 | 27.5X2 | 159 | 105 | 110X100 | 85X75 | 9 | 350 | 1.94 |
