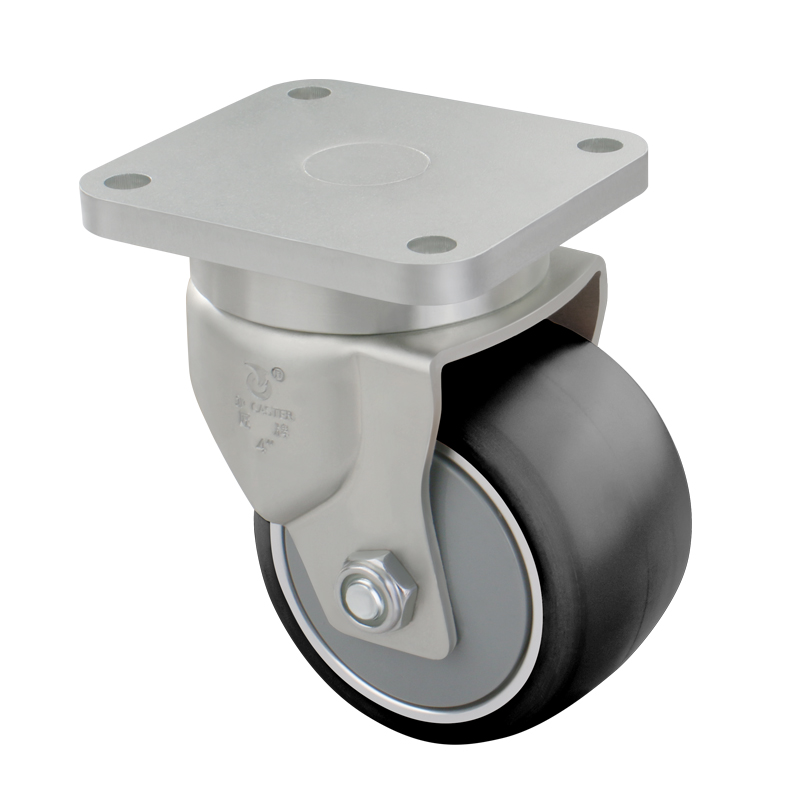

JQR063/B1
Product Model
JQR063/B1
Wheel diameter
76~127mm
Wheel width
60mm
Tread material
Polyurethane JPZK03
Tread hardness
Shore 93A±3
Tread color
Black
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
Aluminium alloy
Loading capacity
400~500kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Plate swivel caster Plate thickness 10mm ,strong & relible. dual bearing inside of swivel head, smooth steering, quiet.single wheel four bearing, wheel rotation more smooth. tread selection of high-end polyurethane, internal heat is small, good heat dissipation.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 3 " | plate swivel | JQR06310-76*60ALCPU010102(FCR) | 76 | 60 | 115.5 | 62 | 110X100 | 85X75 | 11 | 400 | |
| 4 " | JQR06310-100*60ALCPU010102(FCR) | 100 | 60 | 138.5 | 80 | 110X100 | 85X75 | 11 | 450 | ||
| 5 " | JQR06310-127*60ALCPU010102(FCR) | 127 | 60 | 165.5 | 103 | 110X100 | 85X75 | 11 | 500 |
