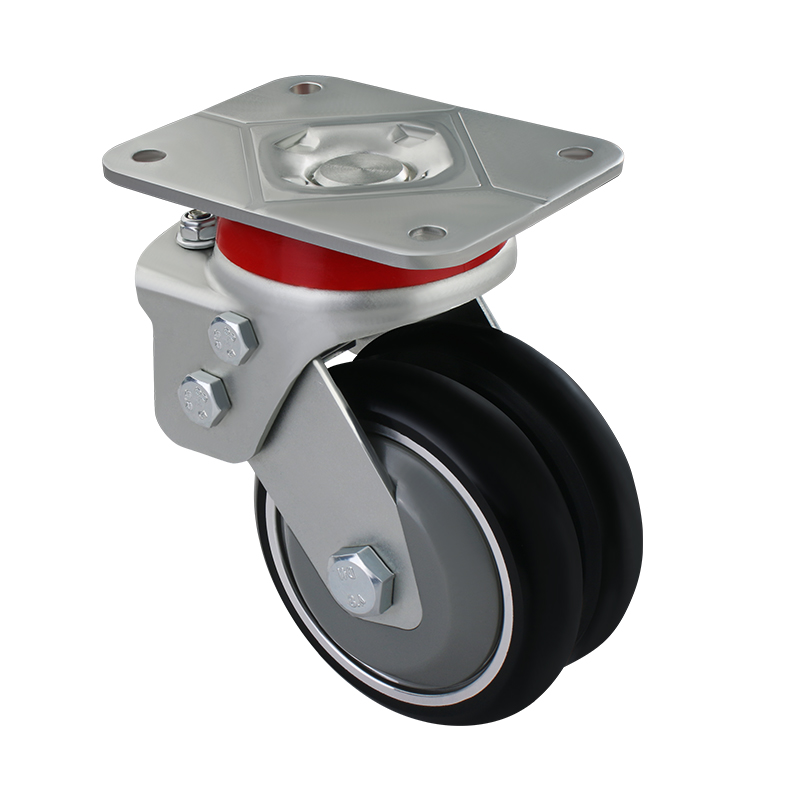

JQR252
Product Model
JQR252
Wheel diameter
65~100mm
Wheel width
23X2mm
Tread material
Polyurethane JPZK03
Tread hardness
Shore 93A±3
Tread color
Black
Fork material
Heavy pressed steel， Zinc finshing
Wheel core
AL.Alloy core double ball bearing
Loading capacity
180~230kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
AGV secondary shock absorbers driven casters Two-stage shock slave wheel,double spring primary shock,polyurethane block secondary shock.shock-absorbing structure design makes the wheel in the concave and convex ground, not damaged by vibration.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications
| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | overall height (mm) | lowest height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight （kg） |
| 2 .5" | plate swivel | JQR25210-65*25X2ALCPU020201 | 65 | 25X2 | 106 | 95 | 56 | 110X85 | 86X60 | 8.5 | 180 | 1.70 |
| 3 " | JQR25210-75*23X2ALCPU020201(FCR) | 75 | 23X2 | 116 | 105 | 62 | 110X85 | 86X60 | 8.5 | 200 | 1.76 | |
| 4 " | JQR25210-100*23X2ALCPU020201(FCR) | 100 | 23X2 | 147 | 132 | 84 | 110X85 | 86X60 | 8.5 | 230 | 2.08 |
| size | Initial height | 50 (KGS) | 100 (KGS) | 150 (KGS) | 180 (KGS) | 200 (KGS) | 230 (KGS) | Limit height |
| 2 .5" | 106 | 98.5 | 97.5 | 96.6 | 96 | / | / | 95 |
| 3 " | 116 | 110.5 | 109.4 | 108.6 | / | 108 | / | 105 |
| 4 " | 146 | 136.5 | 135.8 | 134.7 | / | 133.1 | 132.7 | 132 |
