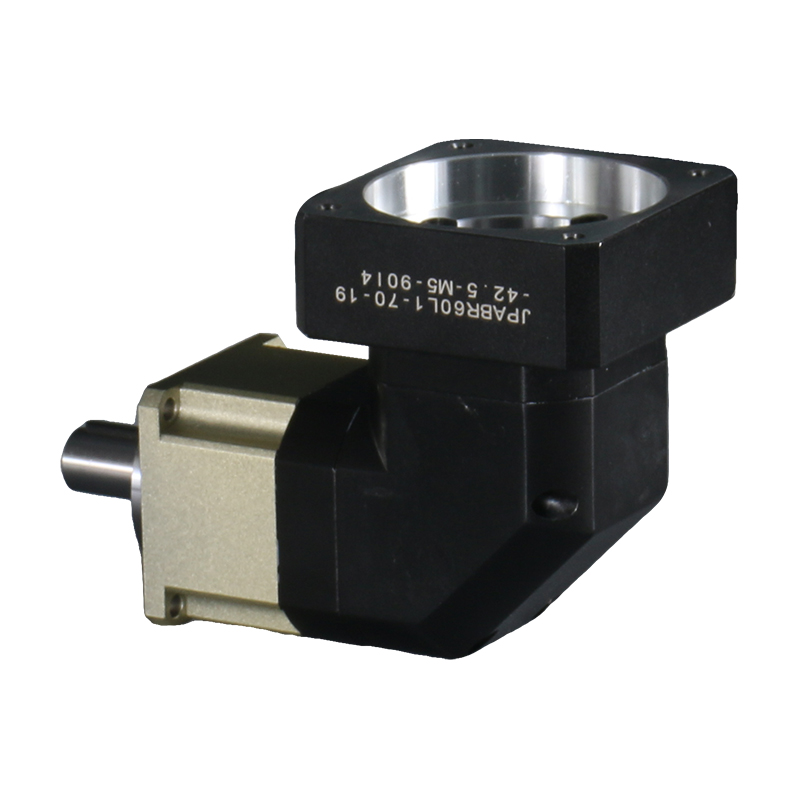

Planetary Reducer（L-shaped）

Planetary Reducer It has the advantages of wide application, economic and practicality, long service life, etc. In the application of servo control, it has exerted a good servo rigidity effect, achieved accurate positioning control, and has a medium to low backlash on the operating platform, and is highly efficient. Performance ： Custom： Anti-corrosion : ★ ★ ★ ★ ☆ ▶ Installation customization Torque ： ★ ★ ★ ★ ★ ▶ Deceleration ratio is selectable Degree of precision ： ★ ★ ★ ★ ★ ▶ Deceleration ratio is selectable weather resistance : ★ ★ ★ ★ ☆ ▶ Motor power is selectable Model number Rated output torque（Nm） Emergency braking torque(Nm) Input maximum rotational speed(rpm) Empty-load torque (Nm) During the return journey(Arcmin) KVX065-1-134-4 50 150 3000 0.8 ≦4 Torsional stiffness Maximum axial force(N) Maximum radial force (N) Reduction ratio (i) Noise(DB) 4.5 770 1550 4 ≦63 Model number Rated output torque （Nm） Emergency braking torque(Nm) Input maximum rotational speed (rpm) Empty-load torque (Nm) During the return journey (Arcmin) KVX065-1-134-10 40 120 3000 0.8 ≦4 Torsional stiffness Maximum axial force (N) Maximum radial force (N) Reduction ratio (i) Noise (DB) 4.5 770 1550 10 ≦63 | Model number | Rated output torque（Nm） | Emergency braking torque(Nm) | Input maximum rotational speed(rpm) | Empty-load torque (Nm) | During the return journey(Arcmin) | KVX065-1-134-4 | 50 | 150 | 3000 | 0.8 | ≦4 | Torsional stiffness | Maximum axial force(N) | Maximum radial force (N) | Reduction ratio (i) | Noise(DB) | 4.5 | 770 | 1550 | 4 | ≦63 | Model number | Rated output torque （Nm） | Emergency braking torque(Nm) | Input maximum rotational speed (rpm) | Empty-load torque (Nm) | During the return journey (Arcmin) | KVX065-1-134-10 | 40 | 120 | 3000 | 0.8 | ≦4 | Torsional stiffness | Maximum axial force (N) | Maximum radial force (N) | Reduction ratio (i) | Noise (DB) | 4.5 | 770 | 1550 | 10 | ≦63
