SS052
Product Model
SS052
Wheel diameter
50~100mm
Wheel width
23X2mm
Tread material
Polyurethane JPZK03
Tread hardness
Shore 83A/93A±3
Tread color
Black
Fork material
Heavy pressed stainless steel 304
Wheel core
Aluminium alloy
Loading capacity
150~200kgs
Rolling speed
5.4 km/h
Temperature
-25℃~+70℃
Medium duty plate type dual wheel caster searies Swivel housing with axial grooved ball bearing and precise radial deep grooved ball bearing in the swivel head, rolling more smooth. dust & splash-proof, fitted copper grease nipple, boltedand secured with very strong central kingpin. withstand vertical pressure & resist torsion and impact. intrenal and external of the wheel double dust and thread cover. wrap-around design to fit the housing. cover with embedded metal bushings, high precision and torsion resistance, dual wheel, pivot steering and rolling more smooth.
Product Details
Performance
Custom
- Installation customization
- Color customization
- Tread hardness customization
Specifications

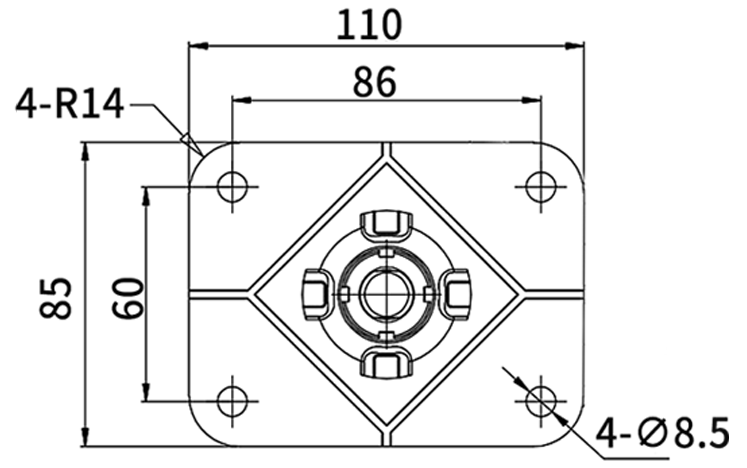

| size | installtion method | product model | wheel diameter (mm) | wheel width (mm) | height (mm) | rotation radius (mm) | Plate size (mm) | hole distance (mm) | blot hole (mm) | loading capacity （kgs） | weight（kg） |
| 2 " | plate swivel | JQR05210-50*25X2ALCPU010201（FCR） | 50 | 25X2 | 85 | 55 | 110X85 | 86X60 | 8.5 | 150 | |
| 2.5 " | JQR05210-65*25X2ALCPU010201（FCR） | 65 | 25X2 | 100 | 56 | 110X85 | 86X60 | 8.5 | 170 | ||
| 3 " | JQR05210-75*23X2ALCPU010201（FCR） | 75 | 23X2 | 107 | 63 | 110X85 | 86X60 | 8.5 | 180 | ||
| 4 " | JQR05210-100*23X2ALCPU010201（FCR） | 100 | 23X2 | 130 | 80 | 110X85 | 86X60 | 8.5 | 200 |
